Milont WEP cable displacement sensor

Product introduction:

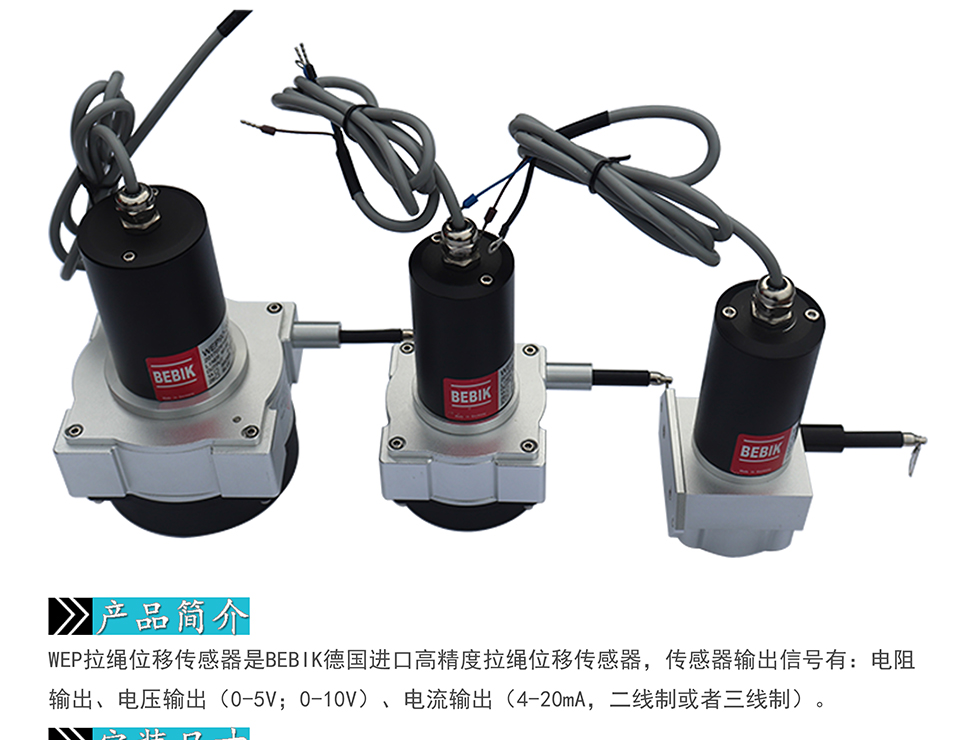

Milont WEP cable displacement sensor is BEBIK Germany imported high-precision cable displacement sensor, the output signal of the sensor include: resistance output, voltage output (0-5V;0-10V), current output (4-20mA, two-wire or three-wire system).


Application area:

It is mainly applicable to:?Storage position location, the opening of the gate is dam protection, control, pressure machinery, paper machinery, textile machinery, sheet metal machinery, packaging machinery, printing machinery, level control instrument, construction machinery, industrial robots, injection machines, woodworking machinery, elevators, air compressor, hydraulic press, height of machine, x-y axis length displacement, level measurement and other automation measurement occasions.




產(chǎn)品參數(shù) | Product parameters

Wiring instructions:


Sensor type

Wiring color

Connection mode

Sensor type

Wiring color

Connection mode

Resistance output type (5K / 10K)

Brown

DC 5V/10V

?current output type

(two?wire system)

Brown

DC 15-24V

Blue

0V

Black

?output

Black

Output

Shielding wire

Ground

Shielding wire

Ground

Voltage output type / current output type

(four wire system)

Red

DC 15-24V

Voltage output type / current output type

(three?wire system)

Brown

DC 15-24V

Green

0V

Blue

0V

Black

Positive?output

Black

Output

White

Negative?output

Shielding wire

Ground

Shielding wire

Ground
